              1. Product

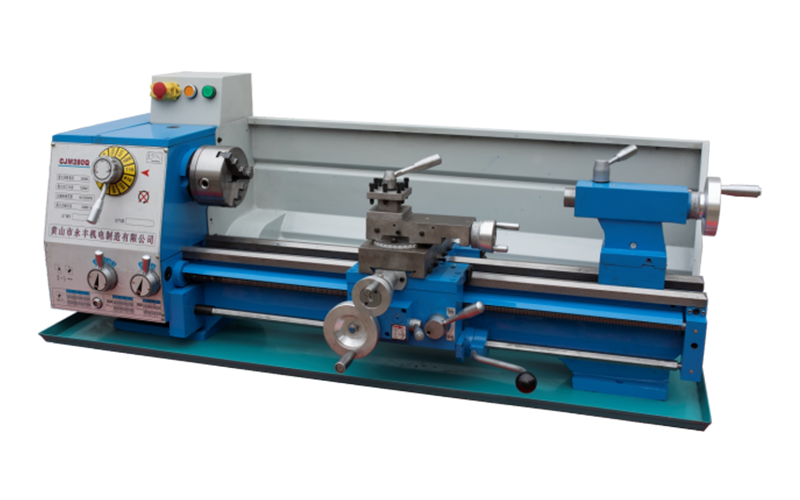

                CJM290Q
                Product CJM series light lathe products

                CJM290Q

                Product features

                  Full gears driven in the headstock, with 12 steps of cyclic speed-changing.

                  Feeding box with 12 steps of variable speeds , covering common threading pitches .

                  Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

                ◆  Two V-type guideway with high accuracy and rigidity.

                ◆  Industrial lathe operation rod;Camlocked tailstock.


                • Parameter
                • Machine tool accessories
                • External dimensions
                • Cooperation

                Technical parameters

                Model


                CJM290Q/500

                CJM290Q/700

                Max. swing over bed

                290mm

                Max. work-piece length

                500mm

                700mm

                Max. swing over carriage

                190mm

                Main spindle diameter

                26mm

                Main spindle taper

                MT.4#

                Max. cross travel of carriage

                160cm

                Max. travel longitudinal of toolpost

                70cm

                Metric threads range/ No

                0.25 ~ 5.0mm/ 18

                Imperial threads range/ No

                4 ~96T. P. I/ 36

                Module threads range/ No

                0.35 ~2. 5M. P/ 14

                Diametrical threading range/ No

                7 ~96D. P/24

                Toolpost longitudinal feeding per spindle rotation

                0.035 ~0. 375mm/ r

                Toolpost cross feeding per spindle rotation

                0.0175 ~0. 188mm/ r

                Max. travel of tailstock sleeve

                75mm

                Tailstock sleeve taper

                MT.3#

                Spindle speed steps

                12

                Main Spindle speed scope

                80 ~ 1600 rpm

                Main motor power

                750W

                Net weights/Gross weights

                170/ 190kg

                195/225kg

                Overall dimensions( L*W* H)

                107× 57× 57cm

                127× 57× 57cm

                Packing dimensions (L*W* H)

                120×61×69cm

                140×61×69cm


                Stamdard accessories

                Optional accessories

                3 -jaw chuck

                Φ125

                Chip tray

                Machine Base

                Belt

                O type 620

                Steady rest

                Follow rest

                Dead centers

                MT.3#,4#

                4 -jaw chuck  Φ125/ Φ160

                Flange plateΦ125/ Φ160

                Chuck spanner

                1  piece

                Face Plate  Φ190

                Thread dial indicator

                Allen wrench

                4#,5#,6#

                Special optional change gears( 12)

                Live center

                Stud dead

                12 - 14; 17 - 19

                Coolant

                Digital readout

                Changing gears

                36T

                Work light




                Product features

                  Full gears driven in the headstock, with 12 steps of cyclic speed-changing.

                  Feeding box with 12 steps of variable speeds covering common threading pitches .

                  Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

                ◆  Two V-type guideway with high accuracy and rigidity.

                ◆  Industrial lathe operation rod;Camlocked tailstock.


                Kind Tips:The products will be improved and updated continously. The changes shall not be noticed additionally. Due to the di?erent con?guration requirements , the machines pictures and physical objects may be di?erent , and the physical machines prevail.
